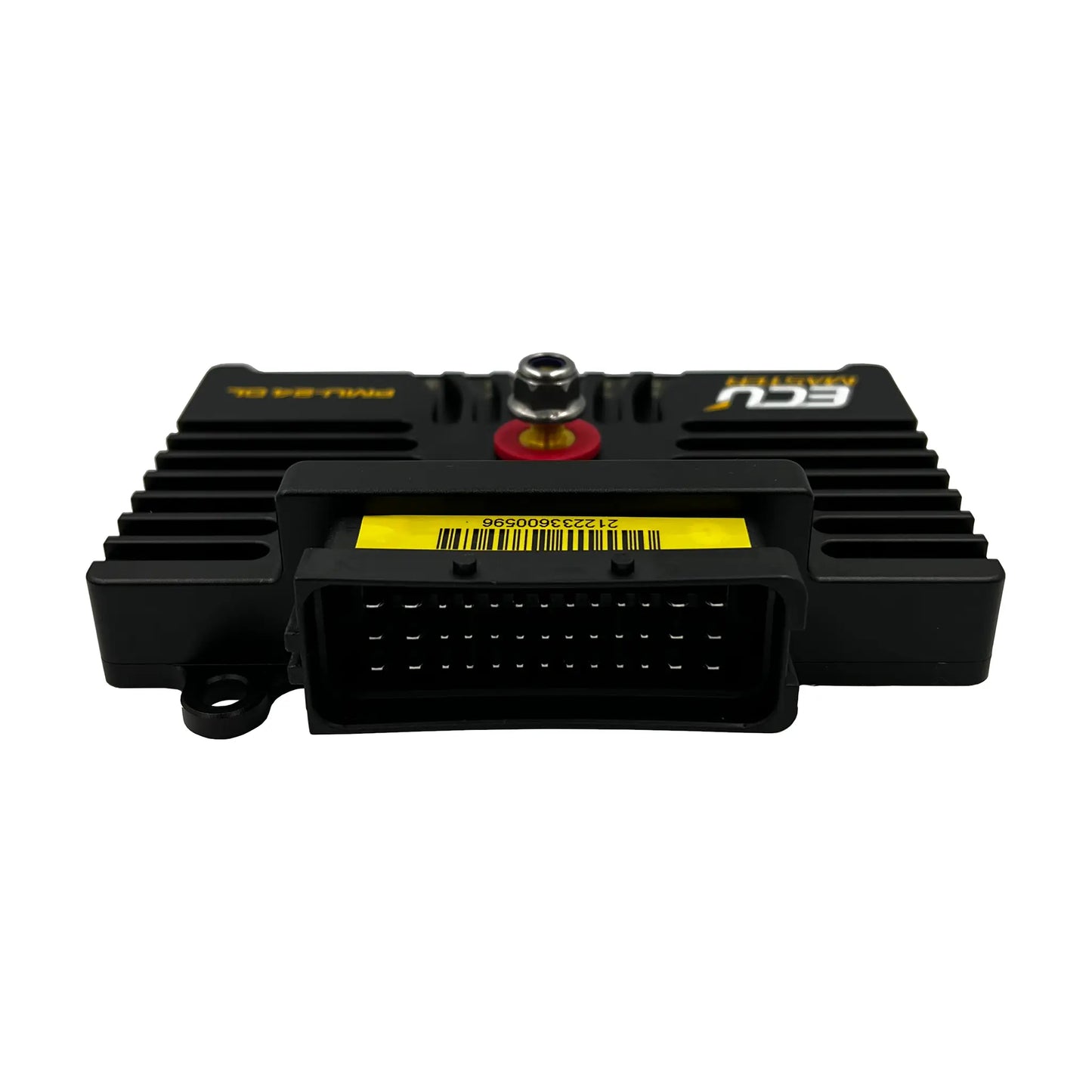

PMU-24DL is a new and enhanced Power Management Unit featuring all the benefits of the PMU-16, now with 24 high-side outputs and internal data logging memory as a standard. All output states, voltage, and current information are transmitted via CAN bus to a dash display to inform the driver of potential problems. All logged data can be downloaded from the device for later analysis.
SPECIFICATION
-
170 Amps total continuous current
Operating voltage: 6-22V (immunity to transients according to ISO 7637)
- Temperature range: AECQ-100 GRADE 1, -40 to +125°C. 10x 25 Amps high-side power outputs (PWM capable)
- Fully customizable ”logic” for each output. Flexible and intuitive client software. Dimensions: 131x112x33mm, weight 385g
- 6x 15 Amps high-side power outputs. • 8x 7 Amps high-side power outputs. • Up to 16 analog inputs
- 24x tricolor LED for each power output state. • 2x CAN 2.0 A/B
- 256 MB data logger memory
- Up to 500 Hz logging frequency
- Real-time clock for data stamping
- 3D accelerometer/gyroscope
- Built-in “inertia switch” in case of an accident. Easy access to CAN-bus data (imports and exports). Internal data processing using logical functions, numbers, timers, and tables
- Custom PID controllers.
