Ecumaster PMU-16 DL

Please note, a USB to CAN cable or equivalent is required to program the PMU.

TECHNOLOGY

The PMU16 is assembled according to IPC-S-815A standards to ensure product reliability. The device is manufactured on an automated assembly line with optical inspection, and automated testing (including burn-in). The PCB material and design and special surface coating ensure reliability even in the harshest environments. Carefully selected components allow for continuous and reliable operation across a very wide temperature range (AECQ-100 GRADE 1 (-40 to 125˚C).

GENERAL SPECIFICATIONS

• Temperature range AECQ100 GRADE1 (-40 to 125˚C) CPU 32 bits automotive, 90MIPS
• Reverse polarity protection Yes, internal
• Operating voltage 6-22V, immunity to transients according to ISO 7637
• Enclosure IP 60, bespoke CNC machined aluminum
• Size (mm) and weight(g) 131x112x32.5, 345g

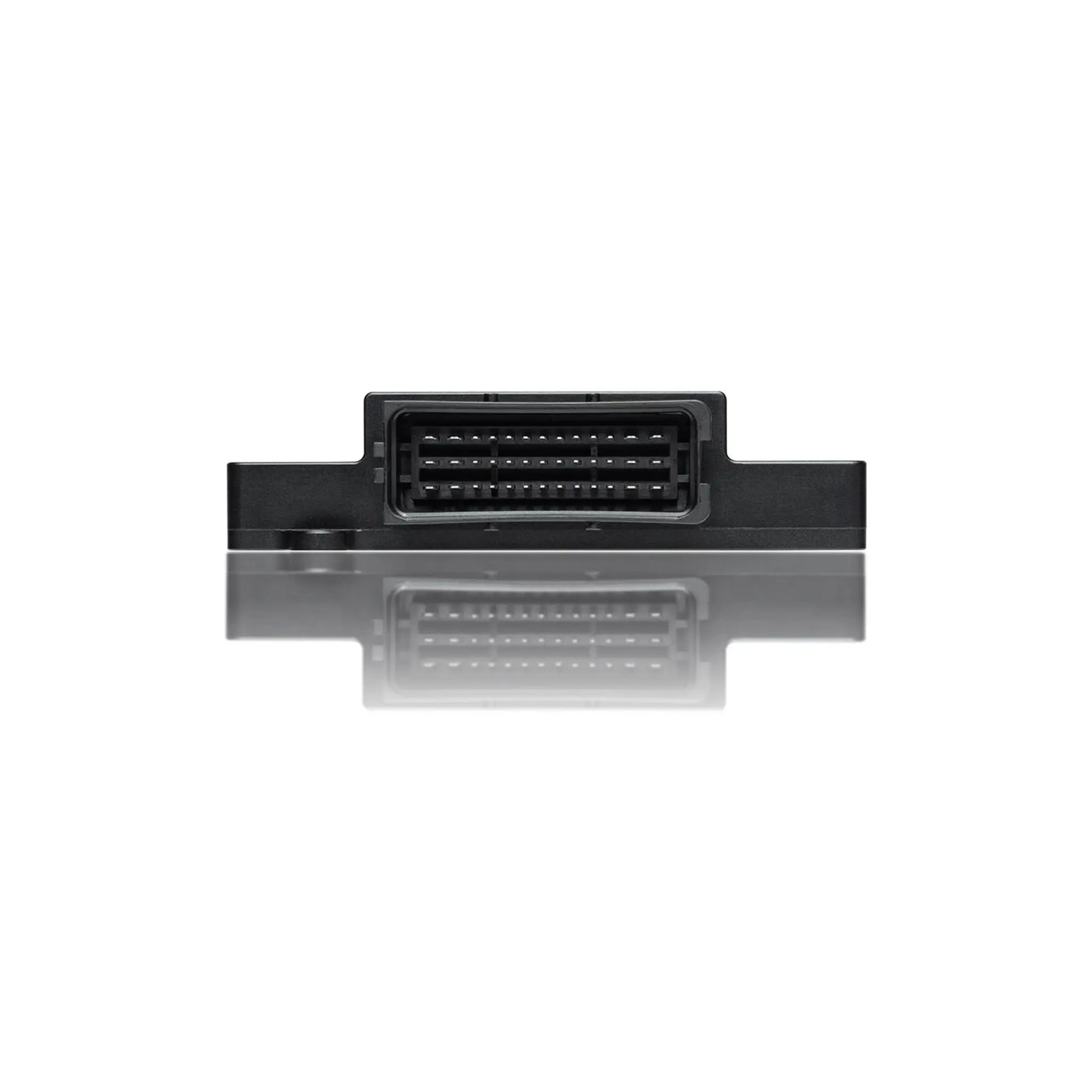

• Connectors 1 x 39 Automotive connector, 1 x M6 stud for battery connection
• PC communication CAN (PCAN, ECUMASTER USBCAN)

OUTPUTS

• High current outputs 10 x 25A(cont.), 6 x 15A(cont.) with Overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output
• Total current output 150A continuous
• Output current control step 100mA
• Wipers output
• Dedicated output with wiper braking feature
• Monitored 5V, 500mA output for powering external sensors.


INPUTS

• Analog inputs 16 inputs, 10 Bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns
• CAN Keypads 2 x Ecumaster keypads (4, 8, 12 keys)

OTHER

• Output state indication
• 16 bicolor LEDs
• Accelerometer/Gyroscope
• 3D accelerometer with 3D gyroscope for logging and crash detection
• Real time clock
• Yes, super capacitor for backup power (up to 3 days)

CAN BUS

• CAN interface 2 x CAN2B CAN standard 2.0B 125, 250, 500, 1000 kbps
• Input/output stream
• User defined with bit masking, up to 48 input messages

LOGGING

• Logging memory: 256 Mbytes ONLY on PMU16DL version (this is the only difference between the two models).
• All PMU16 data may be sent via CAN and logged by another device

LOGGING SPEED

• Variable, defined per channel, up to 500Hz


FUNCTIONS

• Logical operators AND, OR, NOT, XOR, >, =, <=, !=, isTrue, isFalse, Toggle, Flash, Pulse
• Number of functions: 100
• Number of operations: 250
• Update frequency: 500Hz
• Special functions: Wipers, blinkers

RECOMMENDED ACCESSORIES

• USB to CAN Adapter (you may use a Peak PCAN or Kvaser CAN cable, but one of these three USB to CAN interfaces must be used to program the device)
• CAN Keyboard (mechanical switches may be connected to any of the 16 analog inputs, but CAN keyboards add functionality to the PMU16)
