ECUMaster PMU-16 Power Management Unit

The ECUMaster PMU-16 is an intelligent power distribution module for performance and motorsport vehicles. It can replace conventional fuse and relay systems while providing programmable logic, current monitoring and CAN communication for pumps, fans, lights, wipers and other electrical equipment.

• 16 protected high-current outputs with individual current and voltage measurement
• Up to 150A total continuous output
• 16 configurable analogue inputs
• Two CAN 2.0B interfaces
• Programmable logic, timers and specialist vehicle functions
• Designed for reliable operation in demanding automotive environments

A compatible USB-to-CAN interface is required for programming. See the linked accessory below or browse the ECUMaster collection for keypads, wiring and CAN accessories. This standard PMU-16 does not include the internal logging memory fitted to the PMU-16 DL version.

Technical specifications

Please note, a USB to CAN cable or equivalent is required to program the PMU.

TECHNOLOGY

The PMU16 is assembled according to IPC-S-815A standards to ensure product reliability. The device is manufactured on an automated assembly line with optical inspection, and automated testing (including burn-in). The PCB material and design and special surface coating ensure reliability even in the harshest environments. Carefully selected components allow for continuous and reliable operation across a very wide temperature range (AECQ-100 GRADE 1 (-40 to 125˚C).

GENERAL SPECIFICATIONS

• Temperature range AECQ100 GRADE1 (-40 to 125˚C) CPU 32 bits automotive, 90MIPS
• Reverse polarity protection Yes, internal
• Operating voltage 6-22V, immunity to transients according to ISO 7637
• Enclosure IP 60, bespoke CNC machined aluminum
• Size (mm) and weight(g) 131x112x32.5, 345g

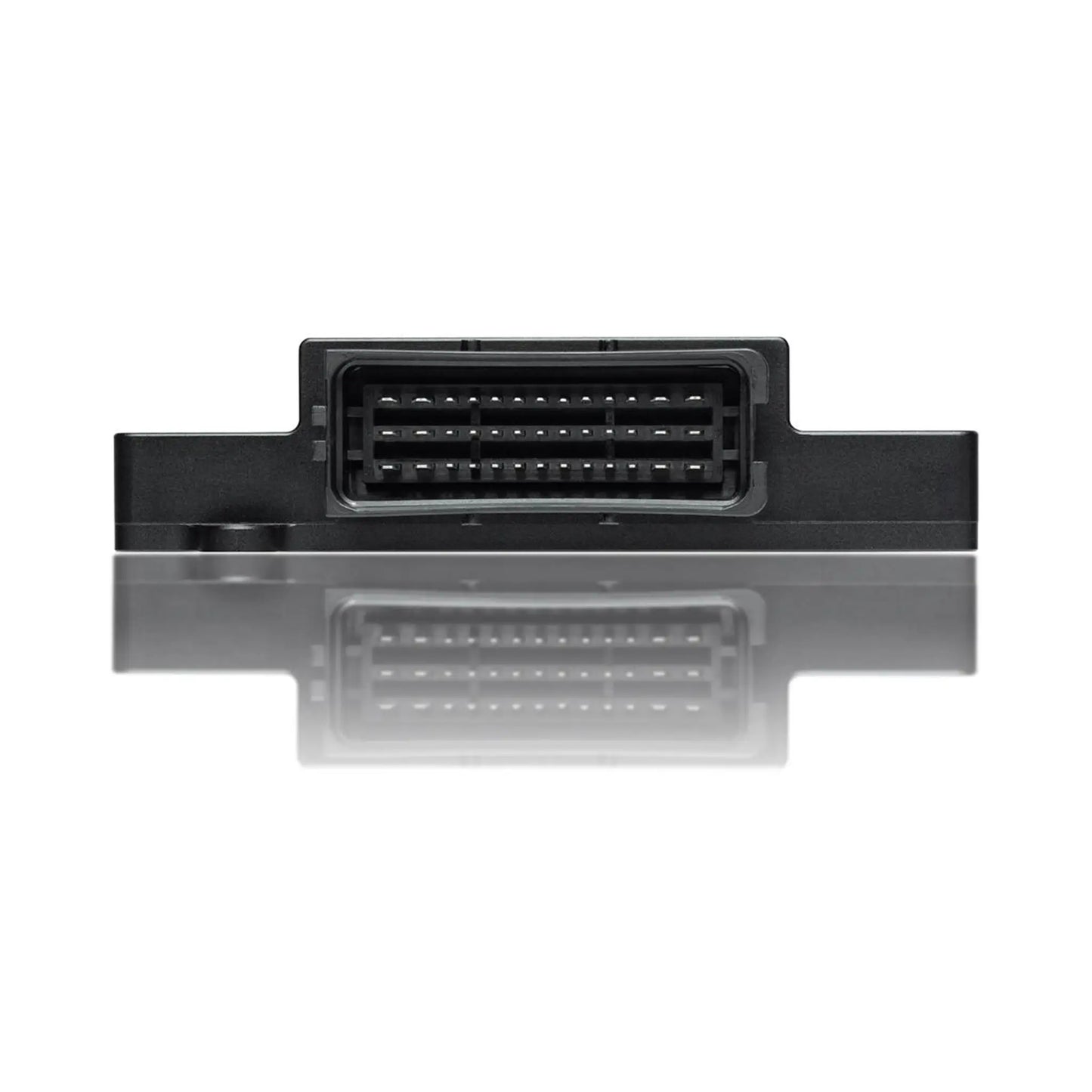

• Connectors 1 x 39 Automotive connector, 1 x M6 stud for battery connection
• PC communication CAN (PCAN, ECUMASTER USBCAN)

OUTPUTS

• High current outputs 10 x 25A(cont.), 6 x 15A(cont.) with Overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output
• Total current output 150A continuous
• Output current control step 100mA
• Wipers output
• Dedicated output with wiper braking feature
• Monitored 5V, 500mA output for powering external sensors.


INPUTS

• Analog inputs 16 inputs, 10 Bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns
• CAN Keypads 2 x Ecumaster keypads (4, 8, 12 keys)

OTHER

• Output state indication
• 16 bicolor LEDs
• Accelerometer/Gyroscope
• 3D accelerometer with 3D gyroscope for logging and crash detection
• Real time clock
• Yes, super capacitor for backup power (up to 3 days)

CAN BUS

• CAN interface 2 x CAN2B CAN standard 2.0B 125, 250, 500, 1000 kbps
• Input/output stream
• User defined with bit masking, up to 48 input messages

LOGGING

• Logging memory: 256 Mbytes ONLY on PMU16DL version (this is the only difference between the two models).
• All PMU16 data may be sent via CAN and logged by another device

LOGGING SPEED

• Variable, defined per channel, up to 500Hz


FUNCTIONS

• Logical operators AND, OR, NOT, XOR, >, =, <=, !=, isTrue, isFalse, Toggle, Flash, Pulse
• Number of functions: 100
• Number of operations: 250
• Update frequency: 500Hz
• Special functions: Wipers, blinkers

RECOMMENDED ACCESSORIES

• USB to CAN Adapter (you may use a Peak PCAN or Kvaser CAN cable, but one of these three USB to CAN interfaces must be used to program the device)
• CAN Keyboard (mechanical switches may be connected to any of the 16 analog inputs, but CAN keyboards add functionality to the PMU16)
