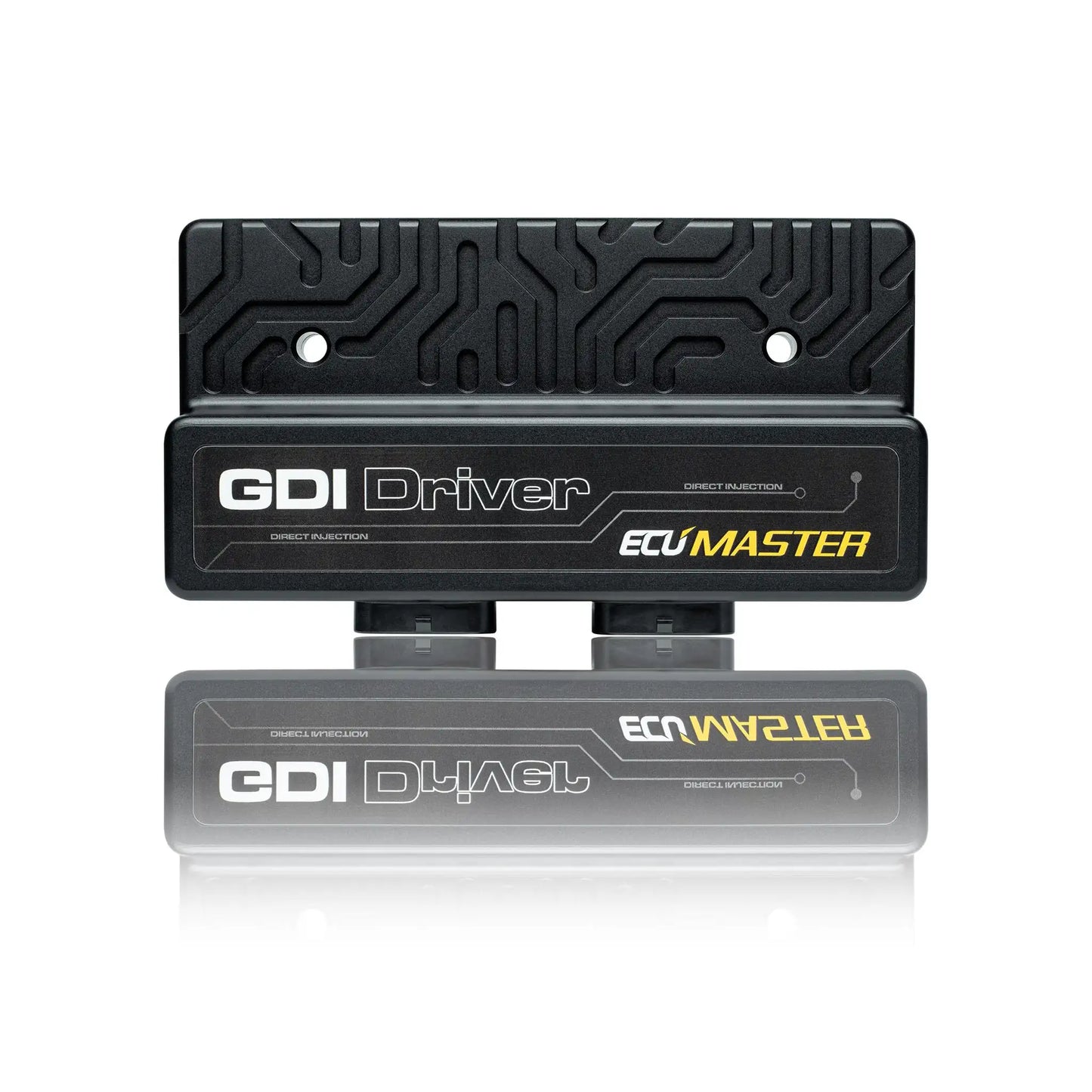

Ecumaster GDI Driver for EMU PRO

The GDI Driver is a high-performance aftermarket controller designed to manage modern gasoline direct-injection systems. Capable of driving up to 8 peak-and-hold injectors and 2 high-pressure fuel pumps, this module delivers precision and reliability for advanced engine setups.

Key Features:

• Injector Control: Converts 12 V to up to 70 V for fast injector response and precise control.
• Pump Valve Management: Supports dual high-pressure pump valves at 12 V.
• SENT Sensor Support: Handles up to 4 SENT sensors.
• CAN Bus Connectivity: Provides diagnostic data for real-time monitoring and data logging.

Although designed to be compatible with ECUs featuring a GDI strategy, the GDI Driver is specifically optimized for use with EMU PRO. When paired, this combination leverages advanced algorithms and hardware to deliver unmatched precision in fuel delivery.

• Supports up to 8 peak-and-hold GDI Injectors (70V Solenoid Valve Type)
  • 8x Low-side outputs
  • 4x High-side outputs
  • Current measurement
• Supports up to 2 high-pressure pump valves with peak-and-hold
  • 2 Pairs of low-side + high-side outputs
  • Current measurement
• Customizable peak and hold currents and timing
• 4x Configurable SENT buses
• 8x Analog outputs (0-5V) for SENT signal conversion
• 1x CAN bus for setup, diagnostics, and EMU PRO communication
• 8x Digital inputs to manage injector control via EMU PRO outputs
• 2x Digital inputs for high-pressure pump control
• AMP SUPERSEAL 1.0 connectors

EMU PRO Strategy:

• Control for up to 2 high-pressure fuel rails
• Customizable injection timing
• Supports up to 16 injectors (8 direct through the GDI Driver, 8 port injectors directly via EMU PRO)
• Configurable fuel injection split between port and direct injection
• Compatibility with various fuel pump cam types
• Supports multiple high-pressure pumps
• Adjustable rail pressure target
