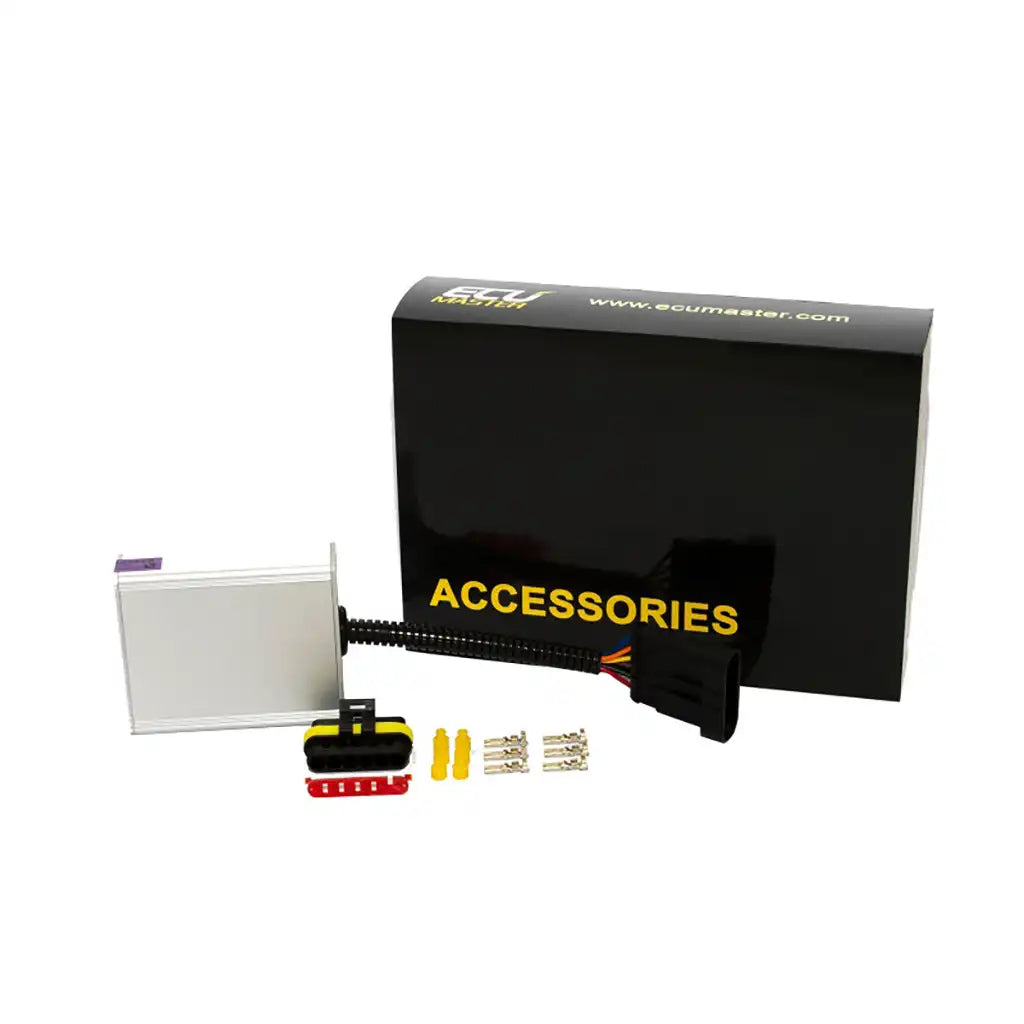

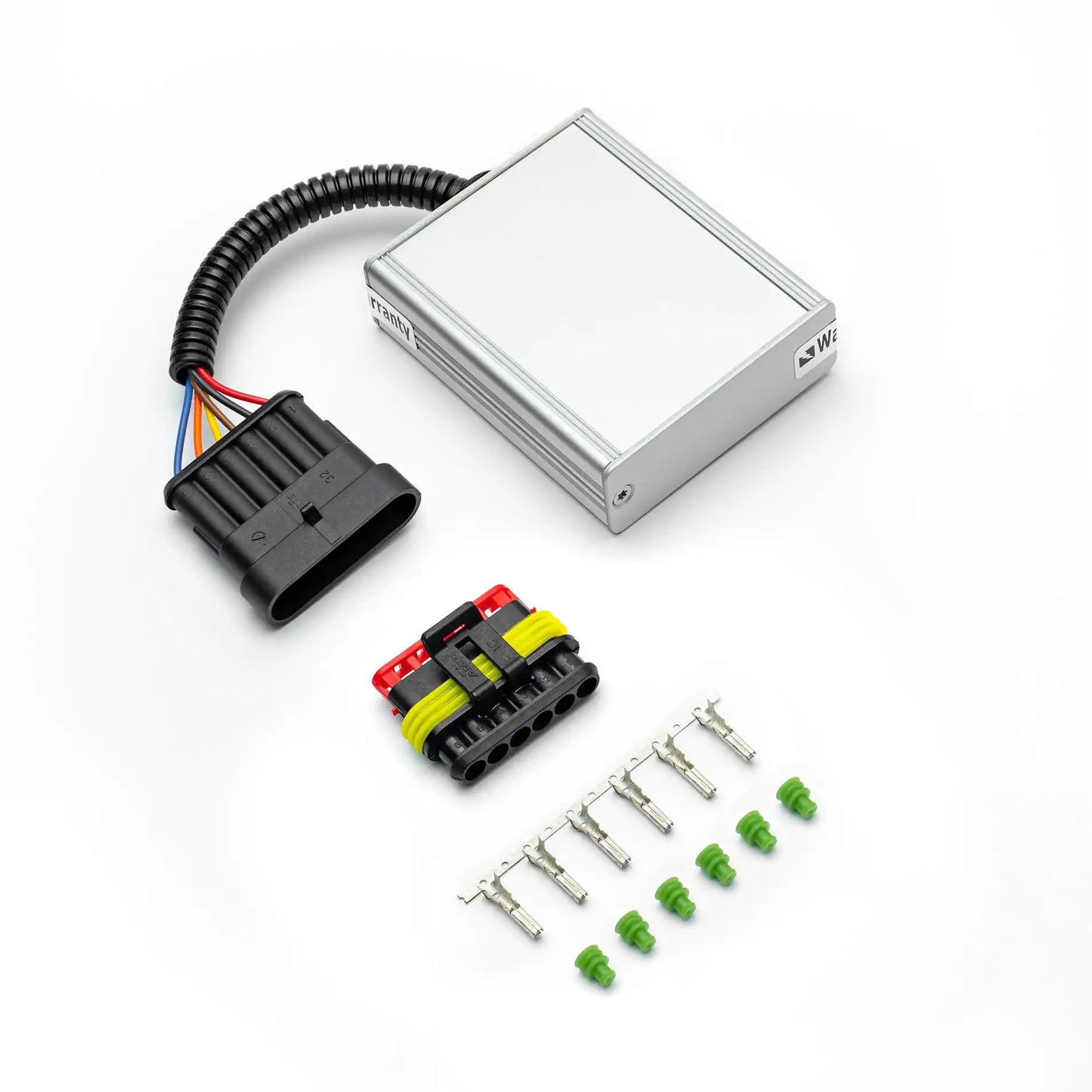

DBW Module For EMU Classic

EMU MODULES - DBW MODULE

DBW module is required to allow EMU control electronic throttle and it is connected to the one of AUX or INJ output. CAN bus module is design to be  connected to  EMU extension port and allows CAN bus communication. Additionaly there are 4 additional analog inputs built in CAN bus module.

Note: The functions associated with operating the electronic throttle are used only for testing stationary (generators, test benches). For safety reasons, do not use the electronic throttle on the public road!!!

DBW module

• up to 7A H-Bridge output current,
• only one EMU output required to control electronic throttle
