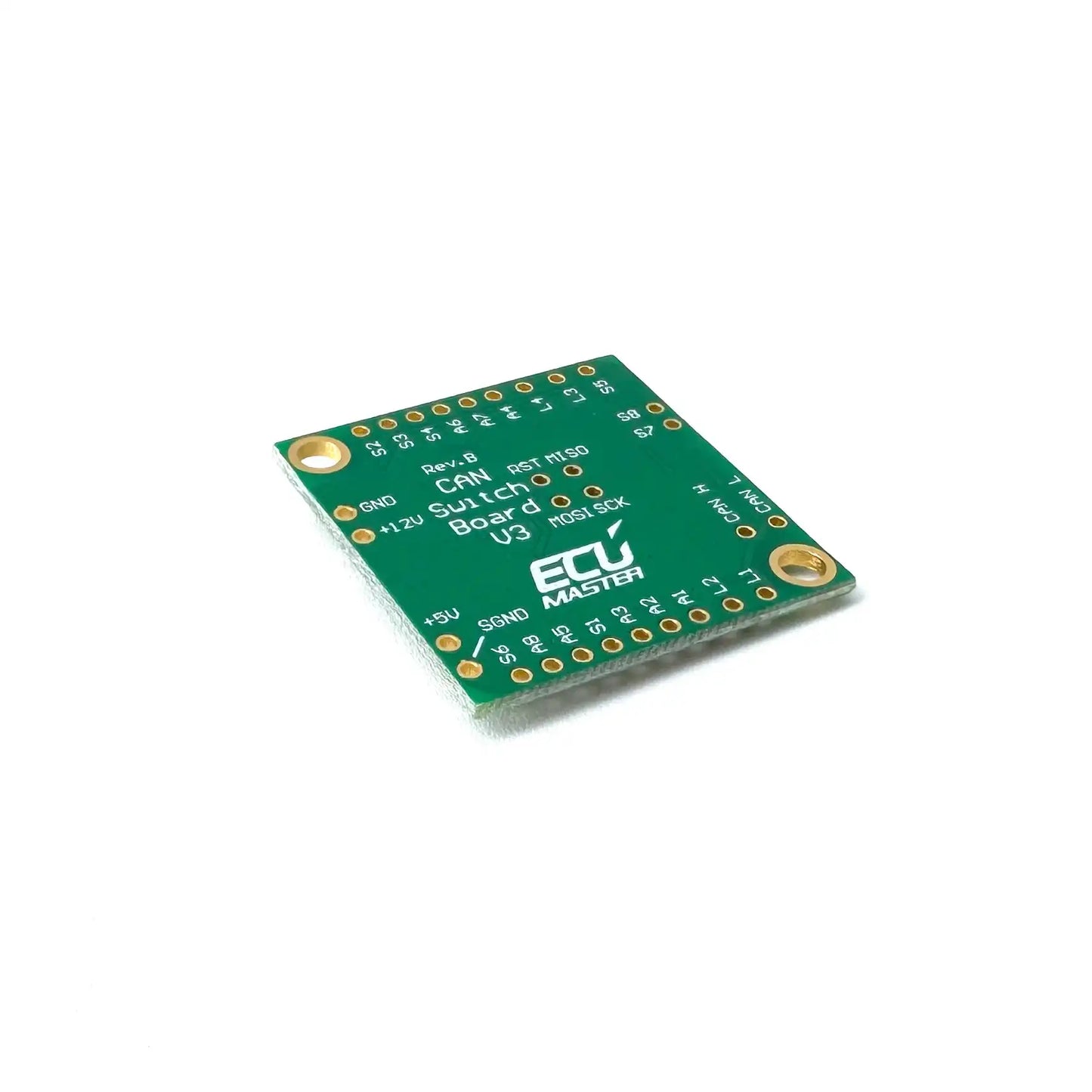

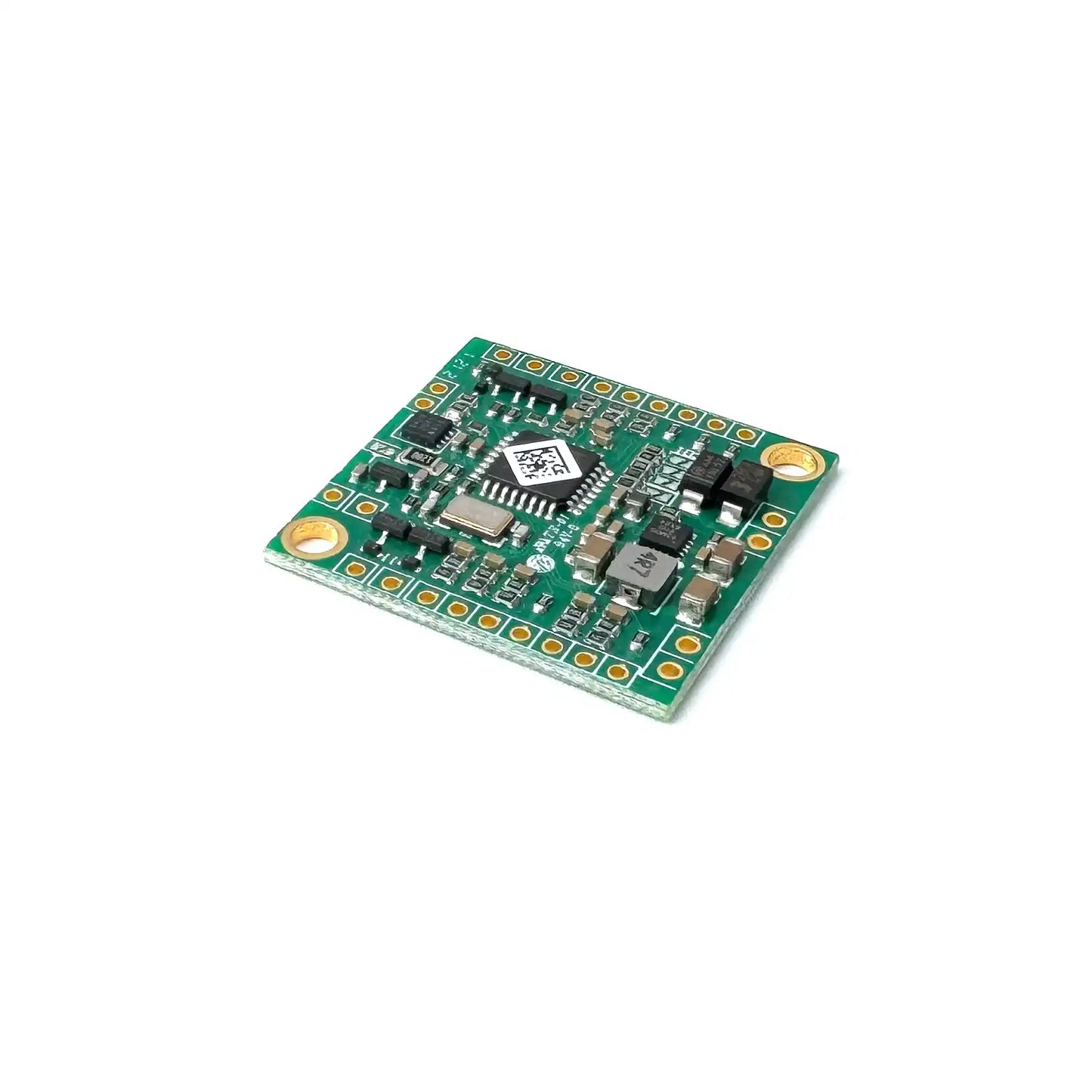

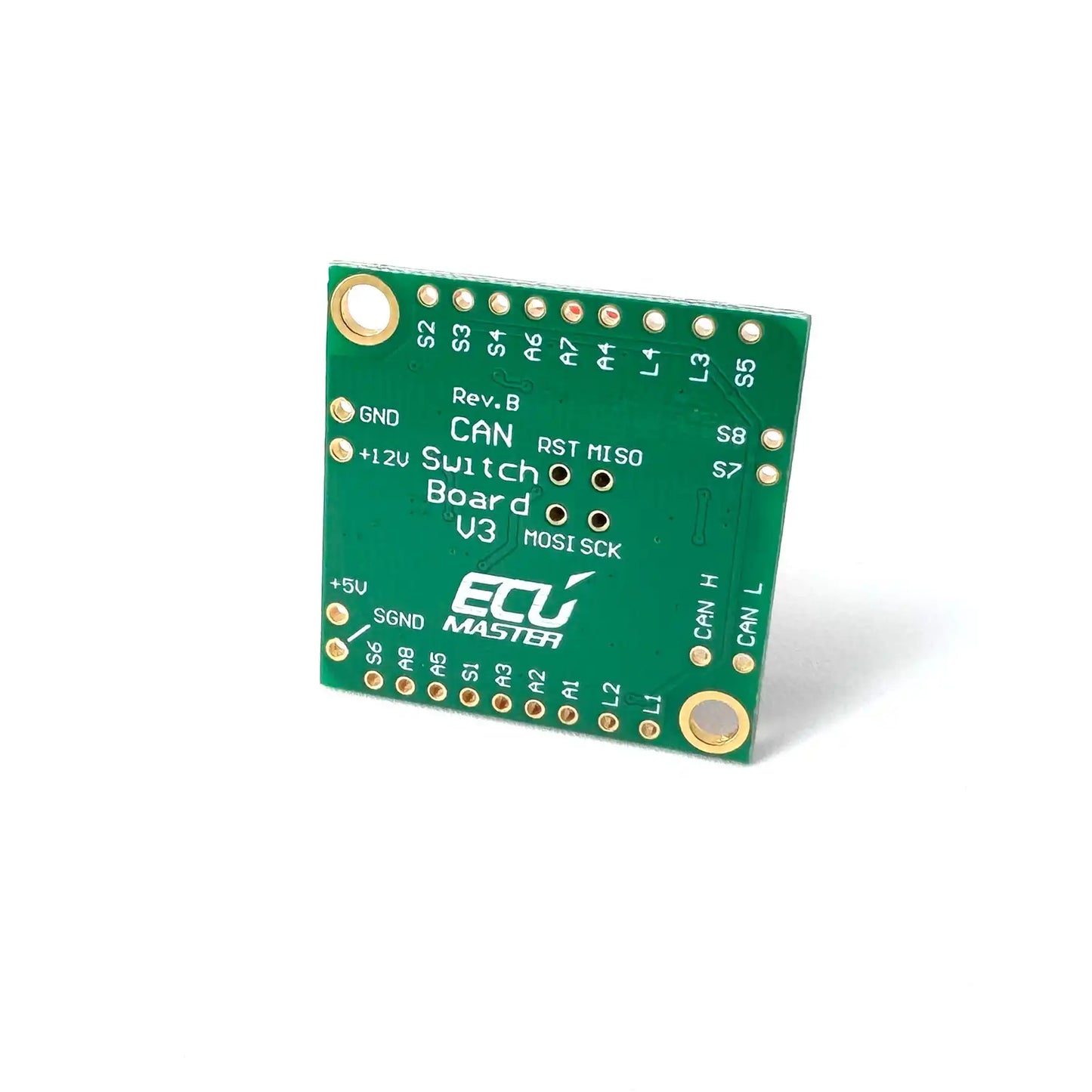

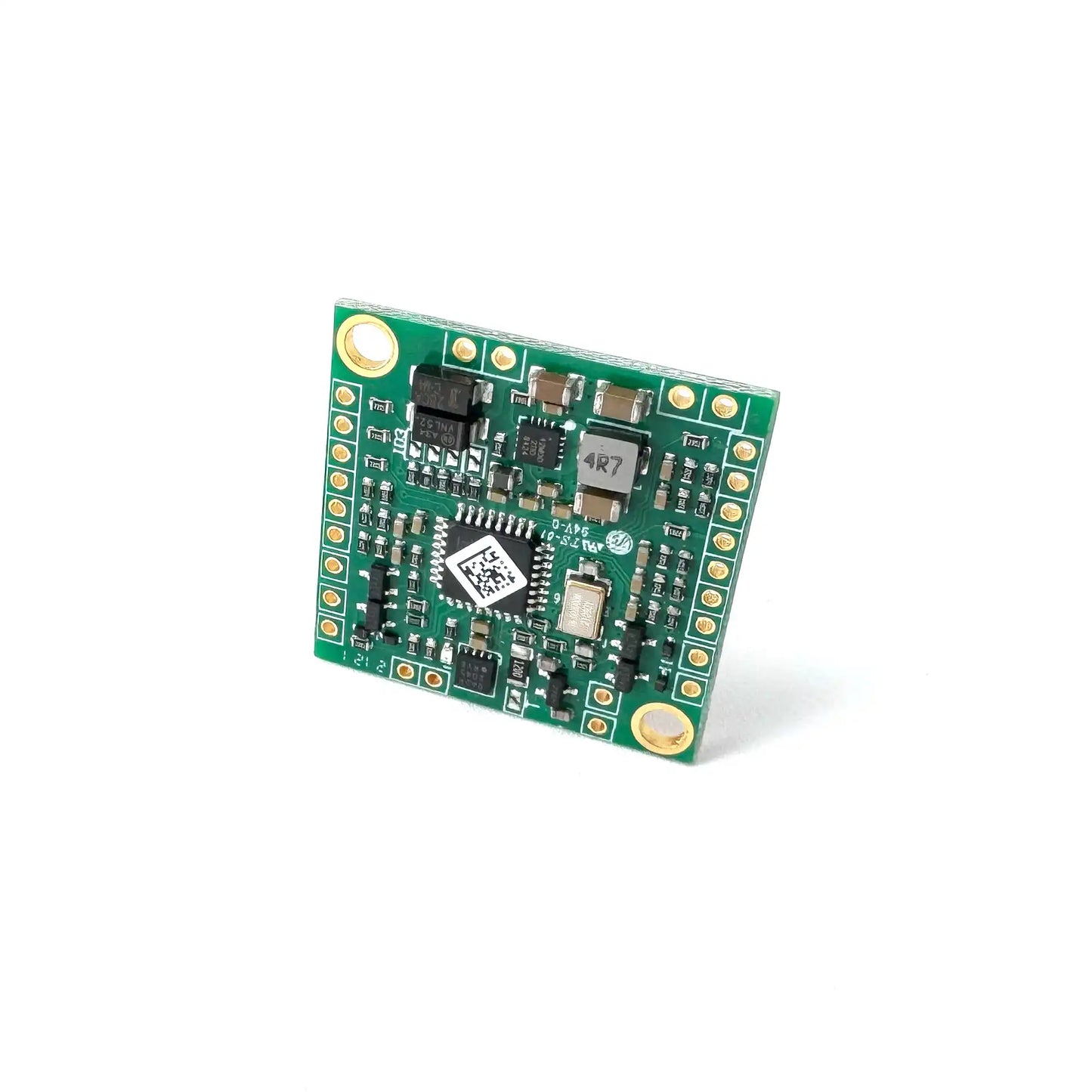

CAN SWITCH BOARD v3

The switchboard device is designed to work  with EMU BACK, PMU and EMU with CAN BUS module. Can be also used with any other devices with custom configurable Can bus inputs.

Key features

• CAN BUS 2.0B, 500 or 1000kbs, user selectable,
• different CAN ID and CAN frame structures can be select,
• only 25x25mm in size,
• 8 low switch button inputs,
• 2 analog inputs / rotary switch inputs, 0-5V, 10bits
• 2 output for LED
• 6-20V power supply
• +5V output for powering rotary switches or potentiometers
